1/2″ Natural Gas Quick Disconnector Kit W/ Stainless Steel Overbraid
Natural Gas BBQ hose used for connecting medium BTU output outdoor appliances such as BBQ Grills, Patio Heaters, Fire Pits, Crawfish Burners, and Beer Brewers to a permanent gas supply via quick disconnect. Stainless steel overbraid defends the hose against damage inflicted by animals and abrasion.
*Standard Hose Length is 10 Feet. Be sure to check our sizing information to ensure the correct item order.
*IF YOU’RE ON MBSTURGIS.COM AND NEED TO SEE PRICING, THE STANDARD LENGTHS WE OFFER, CLICK THE GET MORE INFORMATION & BUY BOX.

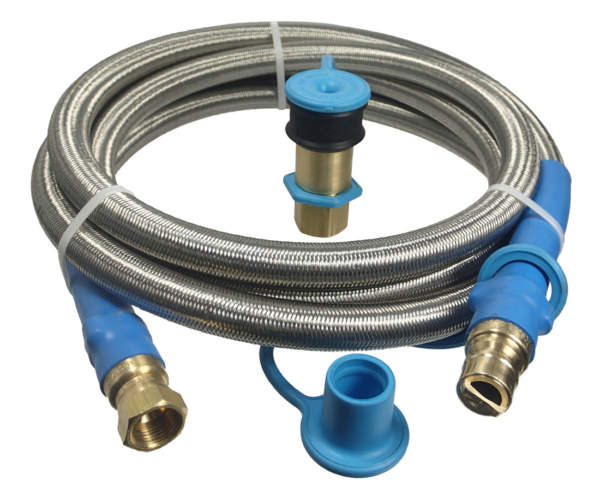

HOSE DESCRIPTION – 1/2″ ID Stripwound Hose Assembly with a 1/2″ Male QD Plug X 1/2″ Female Flare Swivel with Full Overbraid Protection. 10′ Overall Length (Can be custom made to any length required).
QUICK DISCONNECT – Model 4 1/2″ Female Quick Disconnect X 1/2″ Female NPT
MAX. FLOW CAPACITY – 135,000 BTU P/HR @ 1/2 PSIG with a 1″ W.C. Pressure Drop (5PSIG Max Working Pressure)
TEMPERATURE RANGE – -40ºF to 200ºF (-40ºC to 93ºC)
CERTIFICATION – Quick Disconnect (ANSI Z21.41) / Hose Assembly (ANSI Z21.54) & DG 3874 Used for Natural or LP Gas
