Weber Genesis E-330 Hybrid Convenience Gas Connector Kit
Description

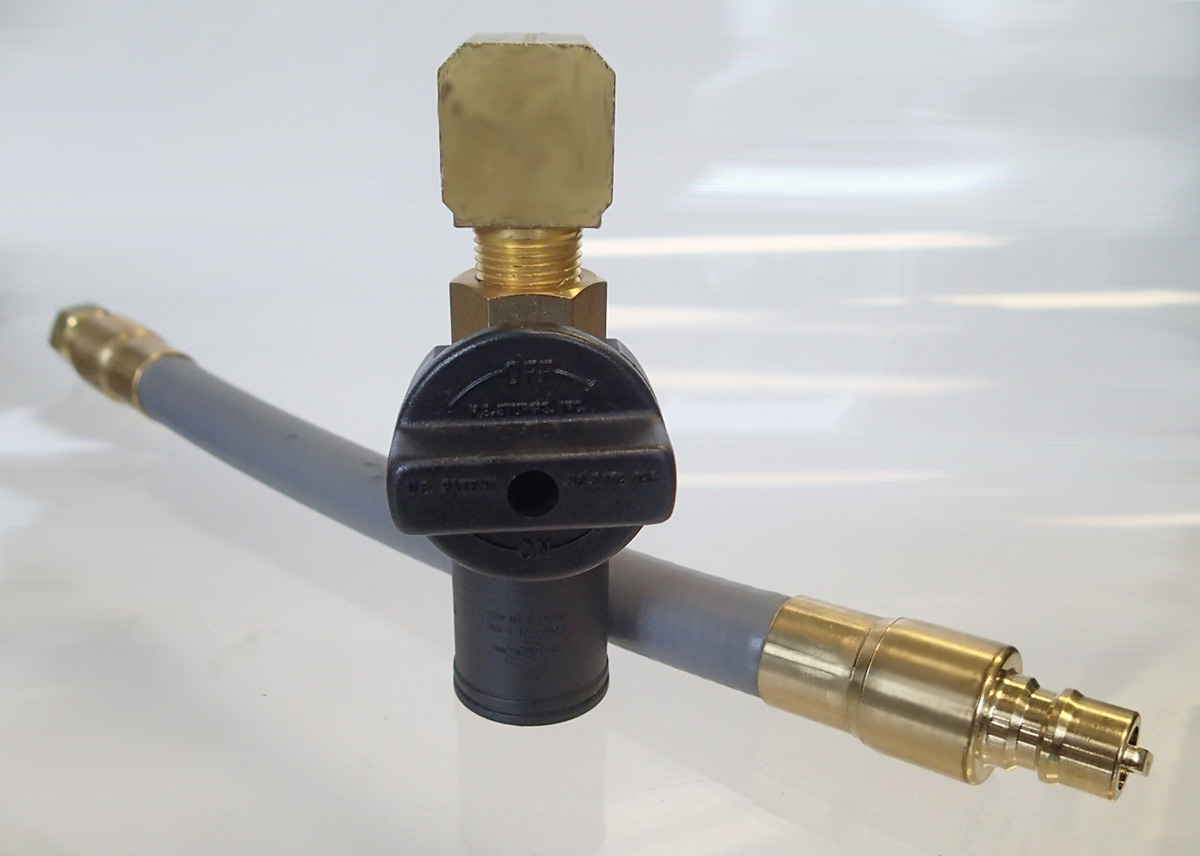

Weber Genesis E-330 Hybrid Convenience Natural Gas Grill Connector Kit. This natural gas grill connector was specifically designed by M.B. Sturgis Inc. for the higher BTU Weber Genesis E-330 Natural Gas Grill. The Hybrid Convenience Gas Connector Kit includes an Integral Ball Valve Quick Disconnect along with a ½” ID hose with a ⅜” Male QD Plug X ⅜” Female Flare Swivel. The Hybrid Gas Connector can also be used for connecting other mid range BTU appliances such as Patio Heaters, Fire Pits, Low Pressure Crawfish Burners, and Beer Brewers to a permanent gas supply via Natural Gas Quick Disconnect. *Standard Hose Length is 10 Feet.
Be sure to check our sizing information to ensure the correct item order.
*IF YOU’RE ON MBSTURGIS.COM AND NEED TO SEE PRICING, THE STANDARD LENGTHS WE OFFER, CLICK THE GET MORE INFORMATION & BUY BOX.
Specifications
HOSE DESCRIPTION – Hybrid Gas Connector. 1/2″ ID Stripwound Hose Assembly with a ⅜” Male QD Plug X ⅜” Female Flare Swivel. 10′ Overall Length (Can be custom made to any length required)
QUICK DISCONNECT – Model 3/375 3/8″ Female Integral Ball Valve Quick Disconnect X 1/2″ Female NPT via 90º Street Elbow
MAX. FLOW CAPACITY – 82,000 BTU P/HR @ 1/2 PSIG with a 1″ W.C. Pressure Drop (5PSIG Max Working Pressure)
TEMPERATURE RANGE – -40ºF to 200ºF (-40ºC to 93ºC) CERTIFICATION – Quick Disconnect (ANSI Z21.90) / Hose Assembly (ANSI Z21.54) & DG 3874 Used for Natural or LP Gas
