Weber Genesis E-330 Hybrid Convenience Gas Connector Kit with Stainless Steel Overbraid
Weber Genesis E-330 Hybrid Convenience Natural Gas Grill Connector Kit with full stainless steel overbraid to protect the gas connector against damage inflicted by small animals or abrasion. This natural gas grill connector was specifically designed by M.B. Sturgis Inc. for the higher BTU Weber Genesis E-330 Natural Gas Grill. The Hybrid Convenience Gas Connector Kit includes an Integral Ball Valve Quick Disconnect along with a ½” ID hose with a ⅜” Male QD Plug X ⅜” Female Flare Swivel. *Standard Hose Length is 10 Feet.
*IF YOU’RE ON MBSTURGIS.COM AND NEED TO SEE PRICING, THE STANDARD LENGTHS WE OFFER, CLICK THE GET MORE INFORMATION & BUY BOX.

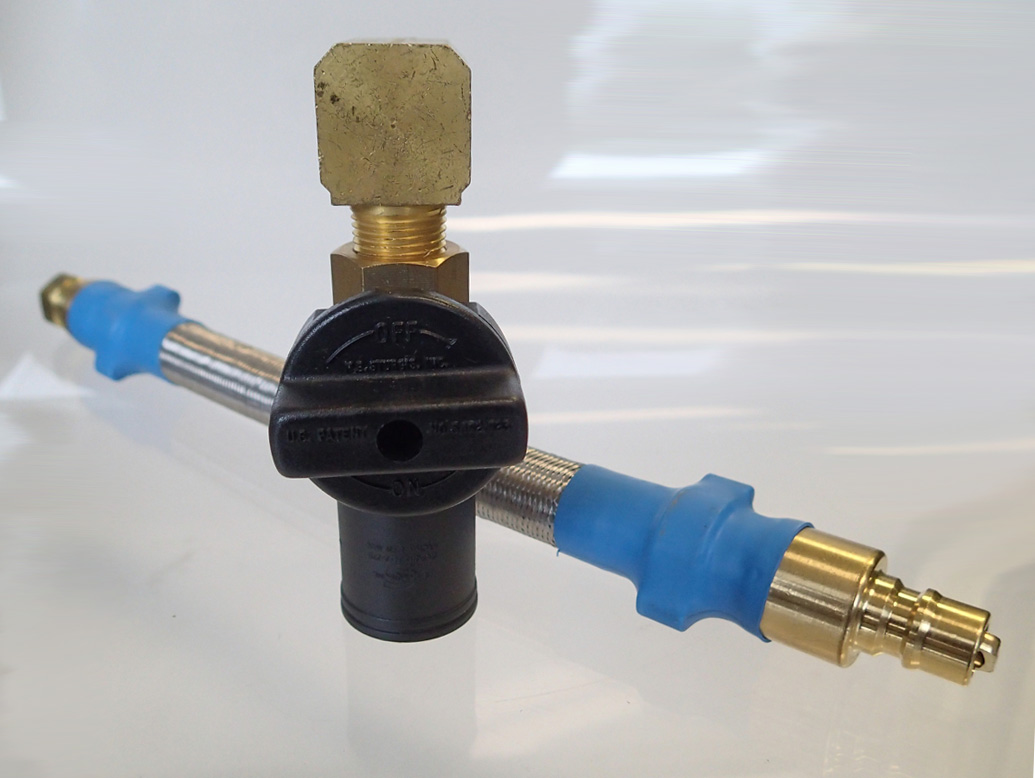

HOSE DESCRIPTION – Hybrid Gas Connector with Stainless Steel Overbriad. 1/2″ ID Stripwound Hose Assembly with a ⅜” Male QD Plug X ⅜” Female Flare Swivel and full coverage stainless steel overbraid. 10′ Overall Length (Can be custom made to any length required)
QUICK DISCONNECT – Model 3/375 3/8″ Female Integral Ball Valve Quick Disconnect X 1/2″ Female NPT via 90º Street Elbow
MAX. FLOW CAPACITY – 82,000 BTU P/HR @ 1/2 PSIG with a 1″ W.C. Pressure Drop (5PSIG Max Working Pressure)
TEMPERATURE RANGE – -40ºF to 200ºF (-40ºC to 93ºC)
CERTIFICATION – Quick Disconnect (ANSI Z21.90) / Hose Assembly (ANSI Z21.54). Used for Natural or LP Gas
