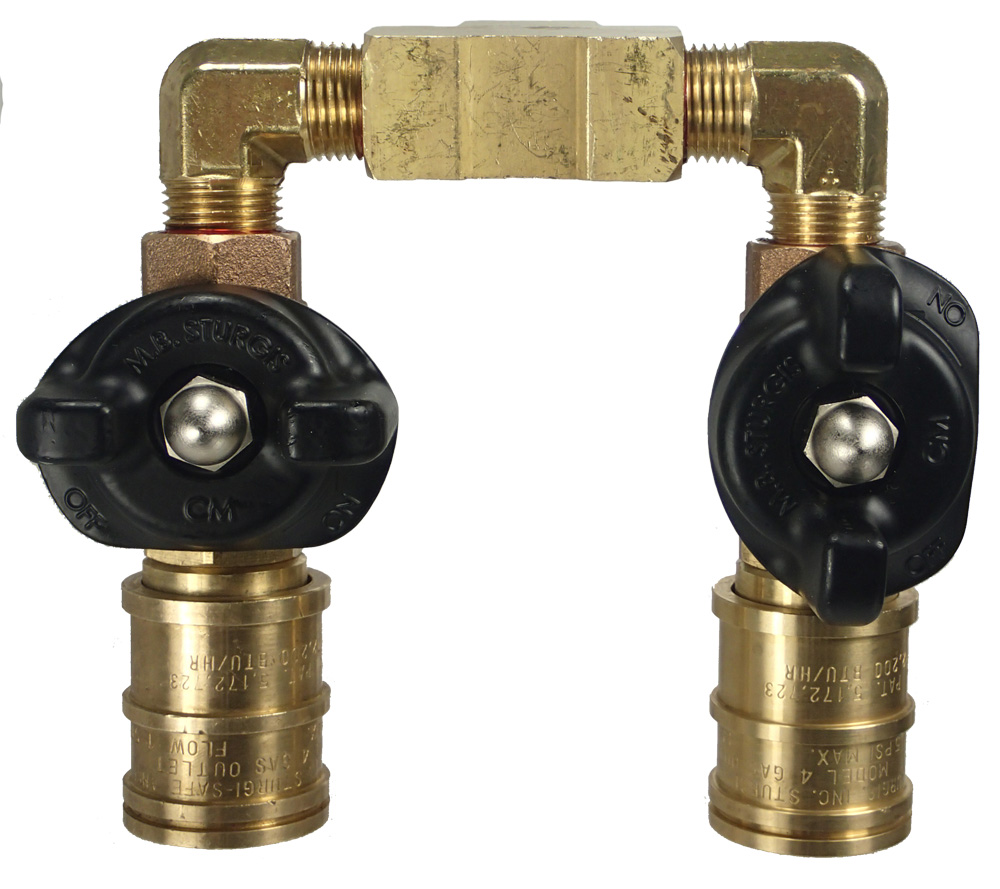

Model 4 1/2″ Dual Ball Valve Quick Disconnect
Used for quick connecting multiple medium BTU output indoor and outdoor gas appliances including Ranges, Fryers, Ovens, BBQ Grills, Crawfish Burners, and Beer Brewers to a single fixed gas supply line. Includes Couple-Safe Technology Thermal Shut-Off Device Protection and an Intragel Ball Valve to shut the gas off at the source.
Dual 1/2″ Integral Ball Valve Quick Disconnect x 90º 1/2″ FNPT
COMPATIBLE HOSE ASSEMBLIES – MBS Part Numbers 100702 / 100450 / 100358
MATING PLUG – 401506 MAX. FLOW CAPACITY – 170,000 BTU P/HR Natural Gas @ .6″ W.C. Pressure Drop
PRESSURE RATING – 25 PSIG (Internally tested up to 350 PSIG)
TEMPERATURE RANGE – -40ºF to 240ºF (-40ºC to 116ºC)
CERTIFICATION – ANSI Z21.90 (CSA) Used with Natural and LP Gas
