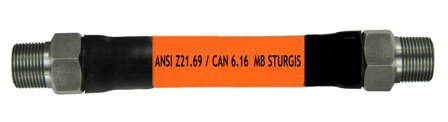

1″ ID Sturgi-Safe Indoor Commercial Gas Connector
Description
The NEW Sturgis-Orange Gas Connector is intended for use with gas fired commercial cooking equipment that may be mounted on casters or otherwise be subject to frequent movement for cleaning or other purposes.
This gas connector will last years longer than the old “stand-by” commercial connectors the industry is accustomed to using and quickly replacing. The new Sturgis-Orange is designed with 4 layers of protection in order to withstand the rigors of constant commercial use. Our base for the connector is a helical steel core to resist cracking, we then cover the core with a stainless steel overbraid to maintain a 400# minimal tensil strength, cover the connector with an extruded anti-microbial poly vinyl for easy cleaning and then we insert a Teflon inner liner to allow a smooth gas flow thorough the connector.
Stop replacing the old style costly gas connectors so often by switching to the strong, durable, long lasting Sturgis-Orange indoor connector.
Standard Length is 36” (Can be custom made to any length up to 72″OAL)
Specifications
HOSE DESCRIPTION – 1″ ID Sturgis-Orange Gas Connector. Includes 1” MNPT Swivels on each end. 36” Overall Length (Can be custom made to any length up to 72” OAL).
COMPATIBLE QUICK DISCONNECT – 1″ Female Quick Disconnect. MBS Part Numbers 104093 (used with the 401801 plug)
FLOW CAPACITY – 695,000 BTU’s at 36″
TEMPERATURE RANGE – -40ºF to 800ºF (-40ºC to 426ºC)
CERTIFICATION – ANSI Z21.69 / Can 6.16 Connectors for Moveable Gas Appliances Used for Natural & LP Gas
